The stepper widget provides users with a simple and intuitive way to adjust numerical values incrementally. Typically displayed as a pair of arrow buttons, one for increasing and one for decreasing the value, the stepper allows users to fine-tune settings or make precise adjustments. This widget is particularly useful for settings like volume control, font size selection, or any other parameter where precise adjustments are required. By incorporating a stepper, apps can offer users a convenient and efficient method for adjusting values with ease.
You can download the project from the following link:
Class_Rar_0__37.rar

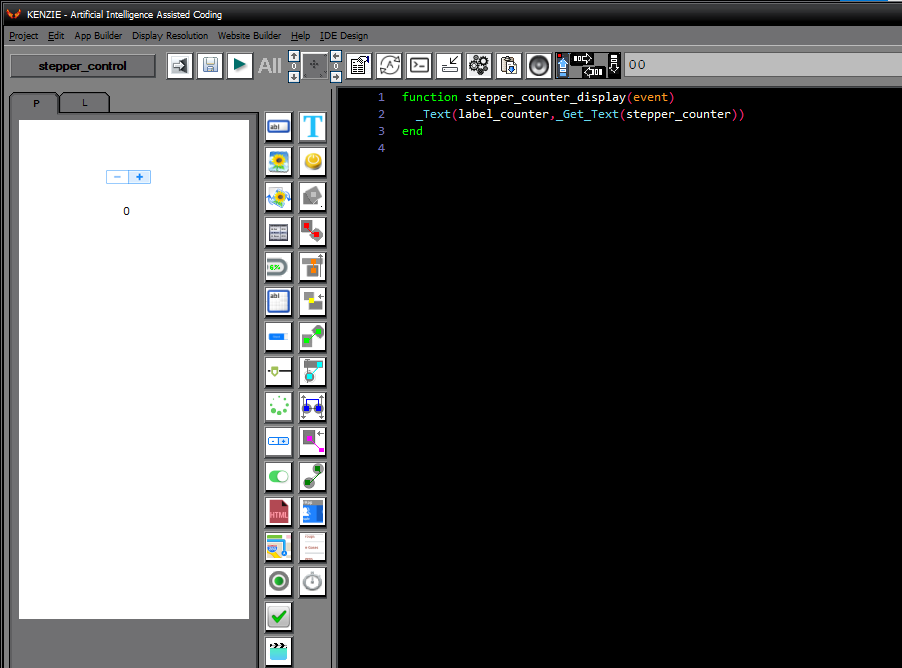

You can observe the project in motion here:

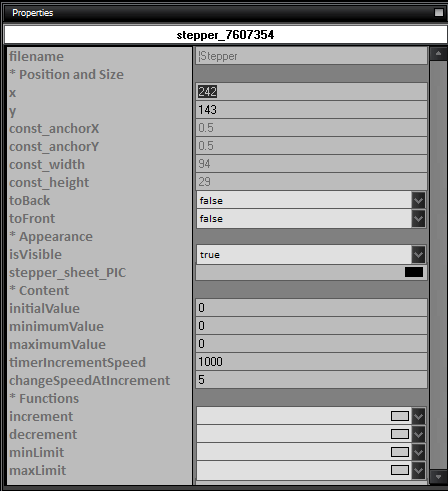

Stepper´s Properties
During design mode, you can assign the following properties and events to a Stepper:
- name: The name of the Stepper control.
- Position and Size
- x: The x-coordinate of the Stepper control.
- y: The y-coordinate of the Stepper control.
- const_anchorX: The anchor point on the x-axis.
- const_anchorY: The anchor point on the y-axis.
- const_width: The width of the Stepper control.
- const_height: The height of the Stepper control.
- toBack: Set to true to move the Stepper control to the back.
- toFront: Set to true to move the Stepper control to the front.
- isVisible: Set to true to make the Stepper control visible.
- stepper_sheet_PIC: The image for the Stepper control.
- Content
- initialValue: The initial value of the Stepper control.
- minimumValue: The minimum value of the Stepper control.
- maximumValue: The maximum value of the Stepper control.
- timerIncrementSpeed: The speed at which the value increments when the Stepper control is held down.
- changeSpeedAtIncrement: The value at which the speed of increment changes.
- Functions
- increment: The function to execute when the Stepper control is incremented.
- decrement: The function to execute when the Stepper control is decremented.
- minLimit: The function to execute when the Stepper control reaches the minimum value.
- maxLimit: The function to execute when the Stepper control reaches the maximum value.
|
